AccuFeed Screw Feeders offer significantly reduced cost and off-the-shelf delivery in a design that delivers unsurpassed feed accuracy and dependability with rates up to 600 cubic feet per hour. These high technology feeders use composite materials of construction in molded components for extreme strength and durability. Contact parts are polyethylene and stainless steel for excellent chemical resistance. Materials meet FDA requirements, and the design is USDA approved.

REDESIGNED QUICK CLEAN ACCUFEED

Click the Play Button btn_play in the center of the video to view.

HOW IT WORKS ANIMATION

Click the Play Button btn_play in the center of the video to view.

Specifications

Standard AccuFeed Specifications:
Sizes:(Inches): 3/4, 1, 1 1/2, 2, 3, 4, 6.
Sizes: (mm):19.05, 25.4, 38.1, 50.8, 76.2, 101.6, 152.4
Contact Materials:(A) Polyethylene
(B) Stainless steel
External Construction:(A) Carbon steel
Coatings:(A) Standard external-enamel
(B) Optional external-epoxy
Drives:(A) DC or AC TEFC with reducer 115/1/60, 230 or 460/3/60
(B) Explosion proof
Sanitary Applications:(A) Food grade gaskets and seals
(B) Guards, covers held with hand fasteners

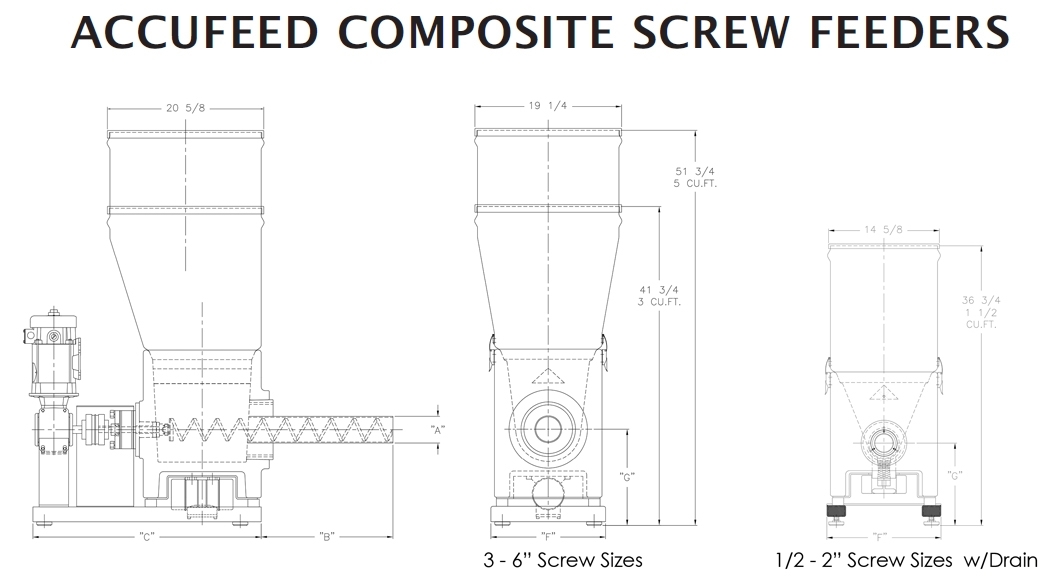

Schematics

AccuFeed Low-Rate Screw Feeder
AF-C-17687B1/2″-2″ AccuFeed with hopperPDFDWG
AF-C-17687C1/2″-2″ AccuFeed with trough cover, no hopperPDFDWG
AF-C-180683″-6″ AccuFeed with hopper and coverPDFDWG
AF-C-180743″-6″ AccuFeed with trough cover, no hopperPDFDWG
