Vibra Screw's Heavy-Duty Feeders, available in 15 sizes, expand your volumetric metering capability to a maximum of 9,800 cubic feet per hour. Controlled vibration of the trough, screw and tube ensures accuracies of plus or minus 1-2% for hundreds of dry materials. Rugged construction allows operation 24 hours a day.

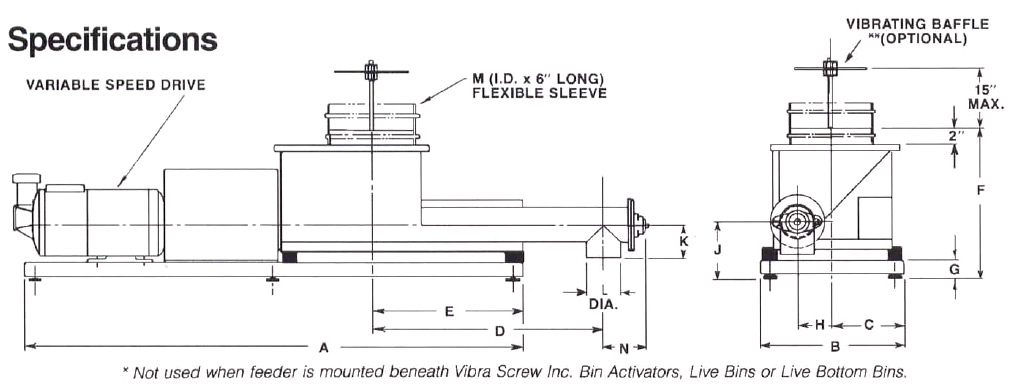

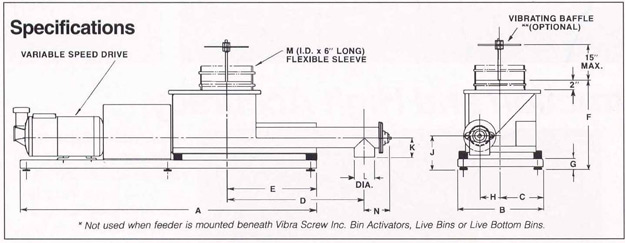

| SPECIFICATIONS |
 Click to View Larger |
| |
| (mm) |
Capacities |
| Size |
A* |
B* |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
N |
Max. Cu Ft/Hr (Cu M/Hr) |
+Max Lb/Hr (Kg/Hr) |
| 2 (51) |
52 (1321) |
18 1/2 (470) |
9 1/4 (235) |
20 5/16 (516) |
12 15/16 (329) |
18 3/4 (476) |
2 3/8 (60) |
3 1/2 (89) |
6 7/8 (175) |
3 5/16 (84) |
2 1/2 (63) |
8 (203) |
4 (102) |
23 (0.6) |
920 (417) |
| 3 (76) |
59 (1499) |
18 1/2 (470) |
9 1/4 (235) |
26 5/8 (676) |
17 3/8 (441) |
18 3/4 (476) |
2 3/8 (476) |
4 3/8 (111) |
6 7/8 (175) |
4 (102) |
3 1/2 (89) |
10 (254) |
4 5/8 (117) |
74 (2) |
2960 (1343) |
| 4 (102) |
59 (1499) |
18 1/2 (470) |
9 1/4 (235) |
26 5/8 (676) |
17 3/8 (441) |
19 1/4 (489) |
2 3/8 (60) |
3 7/8 (98) |
7 7/8 (200) |
4 (102) |
4 1/2 (114) |
10 (254) |
5 1/8 (130) |
200 (5) |
8000 (3629) |
| 6 (152) |
66 (1676) |
20 (508) |
10 (254) |
33 7/8 (860) |
24 1/4 (616) |
20 1/8 (511) |
3 3/8 (86) |
2 3/4 (70) |
9 7/8 (251) |
5 3/8 (136) |
7 (178) |
12 (305) |
6 3/8 (162) |
600 (16) |
24,000 (10.886) |
| 8 (203) |
84 (2134) |
24 (610) |
12 (305) |
43 (1092) |
32 1/2 (825) |
23 1/4 (590) |
4 (102) |
3 1/4 (82) |
11 1/2 (292) |
6 5/8 (168) |
9 (229) |
12 (305) |
7 3/8 (187) |
1200 (32) |
48,000 (21.772) |
| 10 (254) |
100 (2540) |
24 (610) |
12 (305) |
54 1/4 (1378) |
42 5/8 (1083) |
28 1/4 (717) |
4 (102) |
3 3/4 (95) |
13 1/2 (343) |
8 3/8 (213) |
11 (279) |
14 (356) |
8 3/4 (222) |
2400 (222) |
96,000 (43.545) |
| 12 (305) |
106 (2692) |
28 (711) |
14 (355) |
66 1/4 (1683) |
50 1/8 (1273) |
28 1/4 (717) |
4 (102) |
2 1/2 (63) |
14 1/8 (359) |
9 (229) |
13 (330) |
16 (406) |
9 7/8 (251) |
4140 (112) |
165,600 (75.115) |
| 14 (356) |
112 (2845) |
28 (711) |
14 (355) |
72 (1829) |
46 1/2 (1181) |
31 1/2 (800) |
4 (102) |
3 1/2 (89) |
15 1/8 (384) |
10 (254) |
15 (381) |
20 (508) |
11 1/4 (286) |
6560 (177) |
262,400 (119.023) |
| 16 (406) |
120 (3048) |
30 (762) |
15 (381) |
84 (2134) |
48 1/4 (1225) |
31 1/2 (800) |
4 (102) |
5 (127) |
16 1/8 (409) |
11 (279) |
17 (432) |
24 (610) |
12 1/2 (317) |
9800 (265) |
392,000 (177.808) |
| |
|
| CASE HISTORIES |
HD Screw Feeder
C-183 Iron, LB,LBB,HD-2
C-197 Urea, LBB,HD-2
C-227 Salt,Cake, HD-2
C-228 TiO2, BA,HD-2
C-231 Dolomite,LBB,HD-2
C-236 Hydrated Lime, BA,HD-2
C-241 Pulv. Coal, BA,HD-2
C-245 Nickel Alloy,BA,HD-2
|
| |
|
