Spiral Elevating Conveyors lift materials vertically up to 20 ft within a very small area. Material is conveyed solely through the action of twin externally mounted vibrators. There are no internal moving parts to degrade material. Spiral Elevating Conveyors are also useful in material cooling applications due to their long conveying path.
Specifications

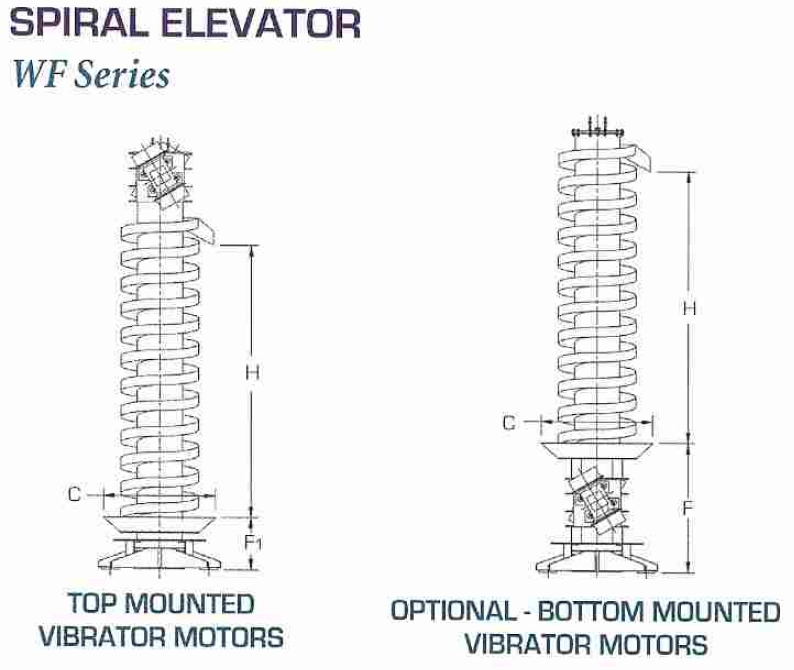

| Model No. | Throughput Rate(Cu.FT./HR.) | F1 | F | H | C | |
| WF 1000/340-U4X | 67 | 13″ | 22″ | 40″ | 21″ | |
| WF 5000/340-U11X | 67 | 13″ | 22″ | 197″ | 21″ | |
| WF 1500/560-U10X | 141 | 15″ | 30″ | 60″ | 32″ | |
| WF 5000/560-U11X | 141 | 15″ | 35″ | 197″ | 32″ | |
| WF 2000/680-U16W | 247 | 15″ | 35″ | 79″ | 38″ | |
| WF 6000/68-U18W | 282 | 15″ | 38″ | 237″ | 38″ | |
| WF 2000/900-U35W | 459 | 13″ | 22″ | 40″ | 21″ | |
| WF7000/900-U53W | 388 | 18″ | 45″ | 276″ | 44″ |
| Standard Features: | ||
| Vertical Sized: | 40 Inch – 276 Inch Tray Height (1016mm – 7010 mm Tray Height) | |
| Materials of Construction: | Contact surfaces available in Carbon Steel or 304 Stainless steel. Non-Contact carbon steel surfaces sandblasted and painted. | |
| Drive Motors: | (2) TENV 230-460/3/60. Ranging from 3/4 HP to 8 HP. | |
| Applications: | Verticle conveying, cooling, batching. | |
